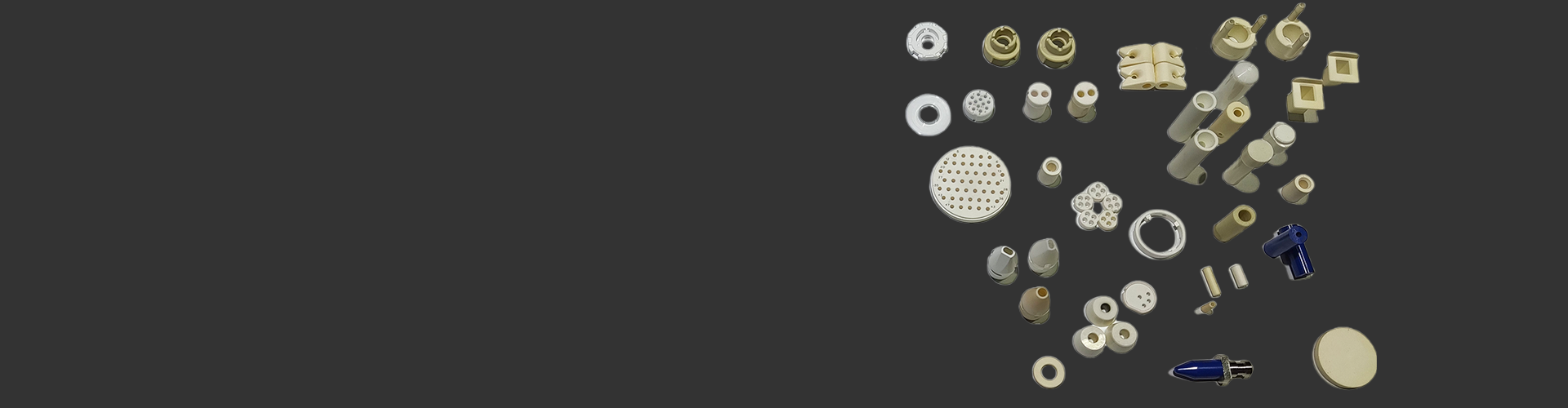

その他のカスタム構造部品
標準製品に加え、複雑な形状、極端な公差制御、特殊な材料の組み合わせなど、お客様の要望に応じて様々なセラミック構造部品をカスタマイズし、航空宇宙、半導体、医療機器などの要求の高い産業のニーズに応えています。
1. 20年のセラミック製造経験
2. 品質保証付きの工場直接供給
3. カスタム生産の利用可能
4. さまざまなセラミック素材で入手可能
5. セラミック・メタル組立および金属化サービスの支援
PRODUCTS
We specialize in high-precision ceramic custom processing, providing a variety of complex shapes and special functions of ceramic parts, widely used in machinery, electronics, semiconductors, medical, chemical and other industries.
Our custom parts include:
- Bushings and nozzles - wear-resistant and corrosion-resistant, suitable for high-precision fluid control.
- Square punched holes, metallized - suitable for electronic and electrical insulation applications.
- Engraving and printing, metal bonding parts - achieve a firm bond between ceramics and metal and improve structural strength.
- Special-shaped ceramic parts——according to customer needs, precision processing of various non-standard ceramic structural parts.
We use advanced molding, sintering and precision processing technologies to ensure that our products meet the industry requirements of high wear resistance, high insulation and high precision.
| Size Capability | ||
| Item | Shape | Maximum / Minimum Size |
Length Range |
Tube | ≤1000mm |
| Rod | ≤1000mm | |
| Plate | ≤400×400mm | |
| Custom Shapes | ≤300mm | |
Outer Diameter Range |
Tube | ≤250mm |
| Rod | ≤150mm | |
| plate | ≤400×400mm | |
| Custom Shapes | ≤150mm | |
Inner Diameter Range |
Through Hole | ≤200mm |
| Blind Via | ≤50mm | |
| Step Hole | ≤50mm | |
| Ball Diameter Range | - | ≤100mm |
| Minimum Wall Thickness | - | 0.1 – 0.2mm |
| Drilling-Min. Hole | - | ≥φ0.4mm |
| Thread Diameter | - | ≥M2 |
| Minimum Root Cleaning | - | R0.1mm |
| Processing Precision | |
| Item | Precision |
Outer Diameter Accuracy |
1-25mm: ±0.002mm 20-50mm: ±0.003mm 50-100mm: ±0.050mm 100-150mm: ±0.100mm |
Inner Diameter Accuracy |
0.5-3mm: ±0.001mm 3-10mm: ±0.003mm 10-30mm: ±0.005mm 30-100mm: ±0.030mm 100-150mm: ±0.050mm 150-200mm: ±0.100mm |
| Length /Thickness Precision | ±0.005mm |
| Ball Precision | ±0.002mm |
| Surface Roughness | Ra0.02 – Ra0.2 |
| Geometric Tolerances | |
| Item | Precision |
| Roundness | 0.002mm |
| Concentricity | 0.002mm |
| Straightness | 0.004mm |
| Verticality | 0.005mm |
| Parallelism | 0.003mm |
| Flatness | 0.003mm |
Note: Due to the wide range of indicators, there are correlations between different data. The above data is for reference only. You are welcome to provide specific drawings and requirements. We will evaluate the cost and delivery time for you as soon as possible!
If you have any needs for ceramic products, please do not hesitate to contact us immediately!
